Welcome to The End is Nigh: Modder's Manual!

This manual plans to detail modding for The End is Nigh, providing help and information in a variety of different areas. Hopefully helping new modders begin learning and understanding the basics, as well as acting as a helpful reference for those more experienced. There are three main sections to the manual:

+ Getting started/tutorials
+ Using the editor
+ The reference

Each main category is split into easier to digest chunks. Another useful part of the manual is the Downloads section, which supplies useful tools to allow for modding The End is Nigh.

Downloads

Getting Started

This section explains how to get setup and started in TEIN modding, with tutorials showcasing how to carry out certain tasks, such as unpack the game data, create a level, etc. By the end of the section and tutorials, you will have created a small new zone for the game, and obtained a basic understanding of modding different aspects of the game. This area of the manual will not go into in-depth detail about every aspect of modding, see the Modding Reference section for detailed information.

Manual Syntax

Information regarding common syntax and formatting rules used throughout the manual. This will make further reading of the manual much easier, as you will have a greater understanding of how the manual represents different types of data/info.

How to Add NPCs

A detailed and simple beginner's guide explaining how to add custom NPCs to the game.

Various Video Tutorials

Video tutorials regarding different aspects of modding The End is Nigh.

Manual Syntax

This manual references and deals with a variety of different types of data regarding The End is Nigh. As a result, it is important that this data can be spotted and understood easily during reading and not mistaken for regular text. To make this a possibility different rules about syntax and formatting have been put into place, the following sections outline these rules and where they will apply.

Variables/Data

Case-sensitive and important data values, variable names, etc. will be formatted like so:

variable_name_or_value

Using this clear, monospace, font allows for such values to easily stand out in large blocks of text, as well as allowing for the case of each letter to be clearly visisble; this is important as such variable names will often be case-sensitive. Note file paths, and directories, are also formatted using this method; for example:

audio\sfx\npc.wav

This is a standard way of representing file paths and should be easily understandable.

Code/Files

The End is Nigh makes use of many external data files to store important information for the game. Excerpts from these files will be formatted like so:

example_code {
some_value
<mark>value_of_importance</mark>
etc
}

This is done for similar reasons to variables/data (hence the similar formatting). Furthermore, values of extreme importance, relevant to the current topic, will be highlighted. As can be seen on line 3 of the example code above.

When an ellipsis is used in an exerpt from one of the game's many files, it means that there is extra data that has been omitted due to lack of relevance. This allows readers to see that what is being shown is only a small section of a larger piece of data.

When an ellipsis is used in a piece of examply syntax it means that the data can carry on after what is being shown, representing that the variable can take multiple values.

Memory Addresses

When dealing with executable hacking, memory addresses are an important aspect, they are formatted the same as variables but are written out in hexadecimal, this is noted by the prefix 0x. Memory addresses, being referenced in-line, will often look like the following:

0x20ADC108: ...

However, lists of memory addresses will be formatted in a similar fashion to code/files:

0x20ADC108: ...
0x22CBFB12: ...
0x124A0802: ...

With the value stored at the memory address written after the colon (where the ellipsis is present in the examples).

Tile References

Tiles will often be refferred to using the following ID formatting: Z1, Z1 - 3, etc. These IDs, consisting of letters and numbers, refer to the specific location the tile can be found at in the Tile Reference. The number refers to the horizontal position in the table and the letter referes to the vertical position. When a hypen is present between two tile values it means all tiles within that given range are being referred to.

This method is used as it makes looking-up the tiles much easier than having to search through the reference for a specific name to appear.

How to add NPCs

The first step in making a custom NPC is to add an additional NPC to the data\npcs.txt file found in the unpacked game data. First, the NPC must be named; NPCs in game are named based on order of appearance, and race. Skeleton NPCs are named NPCx (where x is a unique number to differentiate them), Light Blob NPCs are named NPCBx, Ghosts are named NPCGx, Dark Blobs are named NPCDx, cameos such as Steven and Isaac, from Edmund's other games are named NPCXx, and finally the large Stevens that transport Ash to the future are named NPCHx. Therefore custom NPCs should use a unique naming scheme, such as NPCAx, to prevent your mod from editing and conflicting with in-game NPCs.

The basic description, such as #basic sideways that appears below the name has no effect and is used to identify NPCs.

The movieclip decides what form your custom NPC takes. sound_id is similar, and decides the noises your NPC makes when it's dialogue activates. These are fairly descriptive, such as NPCSkull making a bone-rattling noise when spoken to. Generally, the sound_id should match the movieclip.

The text decides what your custom NPC says when spoken to. Each set of double-quotes "" is a separate box of text that appears in sequence. The new-line character \n makes the text after it start on a new line. Text should be surrounded by square brackets [], and dont forget to add curly brackets {} brackets around your NPC's code, or else an error will occur when you enter the level.

Here is an example of what an NPC entry could look like when complete:

NPC0 {
    #basic sideways
    movieclip NPC0
    sound_id NPCSkull
    text [
        "oh \n . . . \n its you. . ."
        "must be nice \n being alive \nn' all that"
        "when i died \n that tumor wiggled out"
        "it's been floating \n up there for years \n watching me"
        "please\n dont take it. . . \n its all i have left"
    ]
}

To add your NPC to a level, you must add your NPC to the level's data\tilesets.txt code. The NPC's name should be written after npc_1, npc_2 or npc_3. Then, add your npc to the level using the level editor; NPCs are found in tiles Z1 - 3 in the editor, in order of number. See the Tile Reference for more information on these particular tiles.

After finishing the Getting Started / Tutorials section, please see the Modding Reference and particularly the NPCs section for more information on the possible values and details regarding custom NPCs.

TEIN Editor

This section will showcase how to use the editor, providing information on how it works, how to use the tools contained within, shortcuts/hotkeys, etc. This area will not cover modding aspects of the game itself and instead will focus entirely on explaining the editor. For more information regarding modding the game see either the Getting Started / Tutorials section or the Modding Reference section.

Under contruction

Reference

This section acts as a detailed reference where individual areas of modding can be looked at in-depth. This area does not cover modding basics and does not need to be viewed/read in sequence. Use this section if a specific piece of information needs to be found, e.g. what a certain tile does, what palettes are assigned to what areas, what the various data files do, etc. For more general tutorials and basic modding see the Getting Started / Tutorials section.

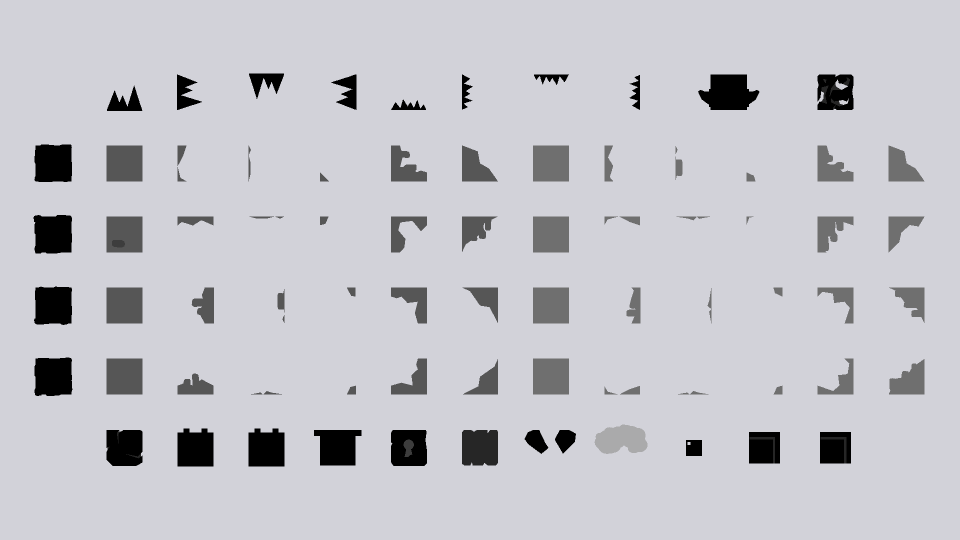

Tile Reference

A complete reference of all the game’s tiles that can be used within the editor. Supplying detailed information on their layer, type, and a description outlining each tile’s unique properties.

Palettes

Detailed information on how the game’s colour palettes work, what palettes are used by each area, and how to modify/add custom palettes.

NPCs

Information regarding NPCs and the "npcs.txt" file. Listing all the currently existing NPCs and how to modify them, as well as add new ones.

Art Alts.

Showcases and references all the different alternate art assets that can be used to swap out graphics for the different entities in the game.

Tilesets

A reference of all the available variables and values contained within the tilesets file, as well as how to modify said file to create custom tilesets.

Physics

Details regarding the various physics files that control how the player and tiles affected by movement tags move, and what each variable in the files means.

Tile Reference

Test

Overview

Location in the unpacked data: textures\palette.png

Palettes are used to recolour the many different assests in The End is Nigh. By loading different palettes for each unique area of the game, each zone is able to look drastically different whilst using many of the same assets.

The file that defines the palette information can be opened in any basic paint program to be modified, allowing for changes to be made to existing palettes as well as the ability to create entirely new ones.

The palette is made up of pixels, and these pixels are interpreted in two ways: as rows, and as a columns. The rows marks a unique palette that can be set, with its row number acting as its palette ID (0 - 63). Whereas each column the pixel is in (0 - 15) specifies what graphics the colour in that particular palette row will be mapped to, whether its background tiles, water/lava, tile details, etc.

Columns

The following section describes what assets/graphics each column of the palette is mapped to:

• 00 - Active tiles (solids, spikes, etc) and the player.
• 01 - Color of rings in carts
• 02 - Decorations for active tiles (bricks, rocks, etc.).
• 03 - Decorations for the first background layer.
• 04 - First background layer.
• 05 - Second background layer.
• 06 - Skulls, seen on a veriety of enemies throughout the game.
• 07 - Background image, layer 1.
• 08 - Background image, layer 2.
• 09 - Background image, layer 3.
• 10 - Background image, layer 4.
• 11 - Background image, layer 5.
• 12 - Certain NPCs, and miscellaneous objects.
• 13 - Toxic/Pollution, and miscellaneous objects.
• 14 - Lava and water (a more desaturated version of the lava colour).
• 15 - Character eyes and other facial features, text, and the glow effect in The Hollows.

These palette columns will also impact other small features of the game’s graphics. However, these are the main uses of each of the different columns.

Rows

The following section describes each palette row, and where it is used in the game:

• 00 - Super Mega Cart All Stars Intro Screen and The Game Intro Screen
• 01 - The End and The Save Select Menu
• 02 - Arid Flats
• 03 - Overflow
• 04 - The Split and Wall of Sorrow
• 05 - Retrograde
• 06 - The Hollows
• 07 - Unused
• 08 - SS Exodus
• 09 - The Machine
• 10 - Golgotha and Anguish
• 11 - Gloom
• 12 - Blight
• 13 - Ruin
• 14 - The End is Nigh Cartridge + Intro Screen and Corrupted Cartridge + Intro Screen
• 15 - Unused
• 16 - Mortaman Cartridge
• 17 - Blaster Massacre Cartridge
• 18 - Nevermore/The Future
• 19 - River City Rancid Cartridge
• 20 - Ash Climber Cartridge
• 21 - Catastrovania Cartridge
• 22 - Rubble Robble Cartridge
• 23 - Fallen Fantasy Cartridge
• 24 - Morbid Gear Cartridge
• 25 - Dig Dead Cartridge
• 26 - Super Mega Cart All Stars Cartridge
• 27 - Spike Tales Cartridge
• 28 - Scab or Die Cartridge
• 29 - Tombs and Torture Cartridge
• 30 - Mortaman Intro Screen and Pus-Man Cartridge + Intro Screen
• 31 - Blaster Massacre Intro Screen
• 32 - River City Rancid Intro Screen
• 33 - Ash Climber Intro Screen
• 34 - Catastrovania Intro Screen
• 35 - Rubble Robble Intro Screen
• 36 - Fallen Fantasy Intro Screen
• 37 - Morbid Gear Intro Screen
• 38 - Dig Dead Intro Screen
• 39 - Unused
• 40 - Spike Tales Intro Screen
• 41 - Scab or Die Intro Screen
• 42 - Tombs and Torture Intro Screen
• 43 - Ghosts ’N Grieving Cartridge
• 44 - Ghosts ’N Grieving Intro Screen
• 45 - Depression Cartridge + Intro Screen
• 46 - Denial Cartridge + Intro Screen
• 47 - Anger Cartridge + Intro Screen
• 48 - Bargaining Cartridge + Intro Screen
• 49 - Acceptance Cartridge + Intro Screen
• 50 - Dead Racer Cartridge + Intro Screen

All palettes onwards are unused and will display completely white unless modified. This leaves modders with 16 palettes that can be added without needing to modify the palette to accept more colours; see the second-half of the following section for details on how to add more palettes.

Modifying Palettes

Once the palette.png file has been modified, or if you simply want to give an area an existing palette, the tilesets.txt needs to be modified for a palette to be assigned. Locate the unpacked game data and navigate to the "data" directory, in there will be a file called "tilesets.txt", open this file. Locate the area which you would wish to modify, this can be found by looking at the area_name variable which will list the name of each area. Once the area has been found simply set the palette variable to the row number of your desired palette; remember that the top-most row in the palette.png image is palette 0 and they continue incrementing upwards in value the further down the image they are.

In the example below, the Arid Flats has been assigned the palette 10 (which is used for Golgotha and Anguish). Changing this value and relaunching the game produces the results on the right, compared to the original palette seen on the left.

For a more in-depth look at the various aspects of the tilesets.txt file, as well as how to modify it, click here.

Adding Palettes

In its default state, the palettes file can only store 64 unique palette entries (rows). However, this can be changed by modifying aspects of certain shader, which can be located in the "shaders" directory of the unpacked data. Two specific shaders will need to be modified for this to work "colormapped.shader" and "colormapped_duplicatedforstupidreasons.shader", as these shaders control how colours from the palette are mapped to colours used by the game's assets.

Open both palettes in any text editor (Notepad, Notepad++, Sublime-Text, etc.) and you will see the following text:

colormapped:

#version 130

uniform mat2x4 color_xform;
uniform sampler2D palettetex;
uniform float palette;

#if COMPILING_VERTEX_PROGRAM

    void vert(){
        //gl_FrontColor = gl_Color * color_xform[0] + color_xform[1];
        vec4 outcolor = gl_Color * color_xform[0] + color_xform[1];
        gl_FrontColor = vec4(texture(palettetex, vec2((outcolor.r*15.0+.5)/16.0,(palette+.5)/64.0)).rgb,
        outcolor.a);
        gl_Position = gl_ModelViewProjectionMatrix * gl_Vertex;
    }

#elif COMPILING_FRAGMENT_PROGRAM

    void frag(){
        gl_FragColor = gl_Color;
    }

#endif

colormapped_duplicatedforstupidreasons

#version 130

uniform mat2x4 color_xform;
uniform sampler2D palettetex;
uniform float palette;

#if COMPILING_VERTEX_PROGRAM

    void vert(){
        //gl_FrontColor = gl_Color * color_xform[0] + color_xform[1];
        vec4 outcolor = gl_Color * color_xform[0] + color_xform[1];

        gl_FrontColor = vec4(texture(palettetex, vec2((outcolor.r*15.0+.5)/16.0,(palette+.5)/64.0)).rgb,
        outcolor.a);
        if(outcolor.r < .1 && outcolor.g < .1 && outcolor.b > .9){
            gl_FrontColor = vec4(0.0,0.0,0.0, outcolor.a);
        }
        gl_Position = gl_ModelViewProjectionMatrix * gl_Vertex;
    }

#elif COMPILING_FRAGMENT_PROGRAM

    void frag(){
        gl_FragColor = gl_Color;
    }

#endif

The highlighted values are the important ones, the 16.0 is the number of columns in the palette file (width) and the 64.0 is the number of rows in the palette file (height). The height is the only value that needs to be modified, simply change this value in both shaders to the number of however many palettes you would like, make sure this matches your palette file itself. Now the new palette row number (64 onwards) needs to simply be referenced in the "tilesets.txt" file for the area that will use the new palette (see the Modifying Palettes section if you do not know how to set a palette for an area), and that is all that needs to be done to add more palette rows to the game.

For more information regarding shaders, click here.

Remarks

Expanding the "palette.png" file to add more palettes, without making the appropriate changes to the colour mapping shaders, will result in incorrect colours and palettes being displayed.

Transparency/alpha is not read from the palette, so saving semi-transparent pixels will simply result in the same colour being used in-game, but with the alpha being set to full - removing the transparency. Fully transparent pixels will either be black or white, depending on how the paint program being used to modify the palette handles saving transparency.

The map screen will make use of colours from the currently loaded area palette to tint the different icons, graphics, etc. As will other graphical elements, such as the tumor counter, NPC text boxes, etc.

Overview

Location in the unpacked data: data\npcs.txt

The NPCs file dictates information regarding all the available NPCs in the game; it defines the traits of each NPC: sound, graphics, text, and all of the aspects that make the different NPCs unique and interesting.

Here is an example of the syntax of one NPC taken from the file (NPC0):

NPC0 {
#basic sideways
  movieclip NPC0
  sound_id NPCSkull
  text [
    "oh \n . . . \n its you. . ."
    "must be nice \n being alive \nn’ all that"
    "when i died \n that tumor wiggled out"
    "it’s been floating \n up there for years \n watching me"
    "please\n dont take it. . . \n its all i have left"
  ]
}

Whilst this may seem complex, the syntax for an NPC can be broken down and represented as the following:

[NPC_ID] {
  moviclip [VALUE]
  sound_id [VALUE]
  text [
    "[VALUE]"
    ...
  ]
}

The # followed by text, in the example, is simply a comment and not interpreted/read by the game itself, hence why it was not added in the simplified syntax breakdown. These comments have been added to all the NPCs in the "npcs.txt" file to allow for more readability.

So, overall, the "npcs.txt" file simply stores a series of NPCS and their properties, that can be placed into the game for the player to interact with. Read on for more information on each of these variables, as well as how to add/modify NPCs.

NPC Listing (IDs and Movie Clips)

A graphical list displaying all of the NPCs within the game. With their appropriate NPC IDs (the values used to set NPCs in the Tilesets file) below them, these values also double-up as being the names used to reference the particular movie_clip (graphic/sprite) that an NPC is given. Remember that variables and their values are case-sensitive, in the case of NPCs all of the IDs are fully capitalised, no lower-case.

Skeletons

NPC0

NPC1

NPC2

NPC3

NPC4

NPC5

NPC6

NPC7

NPC8

NPC9

NPC10

NPC11

NPC12

NPC13

NPC14

NPC15

NPC16

NPC17

Light Blobs

NPCB1

NPCB2

NPCB3

NPCB4

NPCB5

NPCB6

NPCB7

Ghosts

NPCG1

NPCG2

NPCG3

NPCG4

NPCG5

NPCG6

NPCG7

Dark Blobs

NPCD1

NPCD2

NPCD3

NPCD4

NPCD5

NPCD6

NPCD7

Characters

NPCX1

NPCX2

NPCX3

NPCX4

NPCX5

Stevens

NPCH1

NPCH2

NPCH3

NPCH4

As well as the NPC movie clips listed above, NPCs can also be assigned any of the alternate art values as their ```movie_clip`` value. For a full listing on the available movie clips that can be used, see the Art Alts. section.

Sound IDs

The sound_id variable is used to define the sound played when the NPC is spoken to and when text is advanced. The available sound IDs are as follows (the values in brackets mark what sound file each sound ID references):

NPCSkull (audio\sfx\skullnpc.wav)
NPCBlob (audio\sfx\squishnpc.wav)
NPCGhost (audio\sfx\ghostnpc.wav)
NPCIsaac (audio\sfx\isaacnpc.wav)
NPCStevenCameo (audio\sfx\stevenheadwarpnpc.wav)
NPCGish (audio\sfx\gishnpc.wav)
NPCGuppy (audio\sfx\catnpc.wav)
NPCAether (audio\sfx\aethernpc.wav)
NPCSteven (audio\sfx\stevennpc.wav)

New sounds can be created by modifying mainsounds.txt and retrosounds.txt; see the section Sounds for more information on creating new sounds.

Text

The text variable details what text will be displayed when the NPC is interacted with; there are certain formatting rules regarding this text that are quite important in ensuring that the NPC’s text works correctly and looks visually appealing. Below is some example text from an NPC that can be used to compare with what is being explained, to make it easier to understand:

text [
  "when i used\n to hang off\n a wall"
  "id pull\n out from it \nand then"
  "id do a \n jump. . . and \n go like super far!"
  "but when i \ndidn’t pull \noutwards"
  "id mostly just \n go up higher"
  "i call it the \npull out method"
  "\n. . ."
  "i made that \none up years \nago"
  "i imagined it \nwould get more \nof a laugh"
  "\n. . ."
  "please \nleave me alone"
]

Text is entirely contained within square brackets []. When writing text ensure that it is always wrapped inside these brackets or else the game may not interpret the text correctly -- or worse, crash.

Text is then split into different sections, each section is encased within quotes "". These sections define when a button-prompt will appear asking the player to advance the text, when the user presses the appropriate button the text will advance and begin scrolling through to the next section. It is important to reguarly split text into sections for easier reading.

Finally, a special type of character is used called a new-line \n, this character informs the game to start writing text on the next line, rather than being displayed itself. Once again, it is important to reguarly add new-lines so that the text does not clip outside of the text box; however, no more than three lines should be in any given text section, otherwise potential veritcal clipping may occur.

The text box itself can fit appoximately 22 characters on each line, however, this number will vary depending on the characters used due to the font having varying character widths.

Alt. Text

The alt_text variable is used and formatted in exactly the same way as the regular text variable. However, this variable is only used on the four Steven NPCs and acts as the alternate text to display when the appropriate number of tumors has been collected. Below is a list of how many tumors is needed to make each NPC trigger their alternate text (these amounts are hard-coded):

• NPCH1 :: 50 Tumors
• NPCH2 :: 100 Tumors
• NPCH3 :: 170 Tumors
• NPCH4 :: 300 Tumors

Furthermore, the addresses for the various tumor counts needed to trigger alternate text are as follows:

0x000E489D: 50
0x000E495C: 100
0x000E49A8: 170
0x000E4A3A: 300

Attempting to apply the alt_text variable to any other NPC will do nothing. Based on testing, it is apparent that the NPC IDs that react to alternate text are hard-coded into the game and will require executable hacking to modify. The addresses for the alternate text NPCs are as follows:

0x00231274: "NPCH1"
0x002312AC: "NPCH2"
0x002312B4: "NPCH3"
0x00231294: "NPCH4"

For more information on how to modify these values effectively, see the Executable Hacking section.

Adding NPCs

To add an NPC, the first thing that must be done is a new NPC entry must be made in the "npcs.txt" file. This can be written out by following the syntax given in the Overview section, or by copying an existing NPC entry and changing the values as neccessary. When making a new NPC ensure that its ID is completely unique from all the others, otherwise conflicts will occur. Then set all of its variables/properties appropriately, the information in the previous sections of this page can be used as a guide to help.

Once the NPC has had all of its information filled out, it must then be assigned to a specific NPC tile (Z1 - 3), using the "tilesets.txt" file. Locate the specific area tileset that you wish for the NPC to appear in and add in an npc_x variable, where x is a value between 1 and 3; this refers to which NPC tile will be used to place the NPC. An example excerpt from "The End" tileset, shwocasing the NPC definitions:

1 {
  ...

  npc_1 NPC0
  npc_2 NPC1
  npc_3 NPC2

  ...
}

Once this is done, placing any one of the NPC tiles in a level using this tileset will spawn the new NPC.

For more detailed information on modifying tilesets using the "tilesets.txt" file, click here.

Remarks

Placing one of the NPC tiles (Z1 - 3) in a level with its value in the tileset being undefined or set to none will simply result in nothing appearing at the location. Fortunately the game will not crash or present any other kinds of abstract behaviour.

Setting the NPCs movieclip or sound_id variables to invalid values will result in the game crashing when the level containing the NPC is entered. Futhermore, not includng any of these fields, including text, will also cause a crash. However, if any of these problems occur, the game will display a helpful error message making debugging such as issue relatively easy.

Inclusion of the the text field but leaving it like so: text = [] will lead to the game crashing when the NPC is interacted with; no error message is supplied in such instances.

Art Alts.

Note, this page simply provides a reference of all the currently known art alts. that can be used. For information on how to modify the art_alts variable in the tilesets file, see the Art Alts. section on the Tilesets page.

Art alts. allow for instances of graphics to be swapped out with other graphics, allowing for a large amount of visual flexibility and variance. For more information on how to apply art alts, within an area, see the Art Alts. section of the Tilesets page.

Art Listing

General
Player	Life	BigLife	CartConsole
Cartridge	cart2	cart3	Key	Hopper
ChainHitch	ChainLink ChainLink2	FloatingMine	Jar	OutWarp
Gate1	Gate2	Gate3	Gate4	DeathGhost
TheHead	TheBody	TheHeart	Stand	FinalSteve
GlowShroom	GlowShroomSmall

Enemies
MovingOrbBlob	OrbBlob	OrbBlob2	OrbSmall	OrbLarge
OrbLarge2	OrbChomp	AimSpitter	AimSpitter2	EyeShooter
SpitterX	SpitterY	Bullet	EyeBullet	Floater
ChargeSlug	Slug	BigCharger	BigSlug	Splatter
Gasser	GasCloud	Cannon	CannonStand	Cannonball
Fireball	ThwampEye	ThwampGear	CheepCheep	Frog
SkullCrow	SkullFloater	SkullFloaterBreaky	SkullSlug	Bouncer
ChainChomp	CreepingMass	CreepEye	Fish	Fish2
Mask	Revolver	gface ElctroBall	Ghost	Sentry

Minis
MiniDrone	MiniBird	Fly MiniFly	MiniFish	MiniFishWhite
MiniFlea	MiniFrog	MiniFrogWhite	MiniGhost	MiniWisp
MiniRat	MiniRatWhite	MiniWorm

Decorations
Decoration0	Decoration1		Deocration8 Deco10	Decoration9
Decoration4		Decoration5	Deocration6	Decoration7
Deco11	inst10	inst11	eyeball	EscapeEnd

Retro
PlayerRetro	Cannonretro	Cannonstandretro	cannonballretro	cannonballfireretro
Gasserretro	GasCloudretro	Floaterretro	Floater2	FloaterGlitch
SkullFloaterretro	SkullSlugretro	SkullCrowretro	cheepretro	Frogretro
RetroOrbSmall	retroOrbLarge	pacman	RetroElectroBall	RetroGhost
Maskretro	ChainChompretro	ChainHitchretro	ChainLinkretro	Revolverretro
Bouncerretro	CreepingMassRetro	hopperretro	ThwampEyeRetro	ThwampGearRetro
Slugretro	RetroChargerSlug	Splatterretro	bulletretro	RetroFish
SpitterZretro	SpitterYretro	SpitterXretro	Coin	cartend

NPCs
NPC0	NPC1	NPC2	NPC3	NPC4
NPC5	NPC6	NPC7	NPC8	NPC9
NPC10	NPC11	NPC12	NPC13	NPC14
NPC15	NPC16	NPC17	NPCB1	NPCB2
NPCB3	NPCB4	NPCB5	NPCB6	NPCB7
NPCG1	NPCG2	NPCG3	NPCG4	NPCG5
NPCG6	NPCG7	NPCD1	NPCD2	NPCD3
NPCD4	NPCD5	NPCD6	NPCD7	NPCX1
NPCX2	NPCX3	NPCX4	NPCX5	NPCH1
NPCH2	NPCH3	NPCH4

Tilesets
Tilecity	Tilefield
Tilecaves	Tiletox
Tiletox2	Tilehell
Tileairship	Tilecomplex
theglow	TileEnd
Tileretro	TileGlitch
Tilesewers	Tile

Overlays
Overlayscity	Overlaysfield
Overlayscaves	Overlaystox
Overlaystox2	Overlayshell
Overlaysairship	Overlayscomplex
Overlaystheglow	Overlaysend
Overlaysretro	TileOverlays

Backgrounds
bg2	ch2bg
ch3bg	ch4abg
Background	hellbg
airshipbg	field2bg
bgsolid	neverbg
bgretro	bgretrox
bgretro2	None

Foregrounds
fg1	fgretro

Mid-FX Layers
SolidBox	ShadeBox

Adding Art Alts

Adding art alts. can be done by modifying the game’s SWF. Making art alts. requires an understanding of existing art alts. so that frame and layer patterns can be replicated correctly based on what is being created (e.g. all tilesets require the same basic layout, just different graphics). Once the graphics have been developed, AS (ActionScript) linkage must be applied to that the game has a name it can use to reference the asset, just like with the other art alts.

[UNDER DEVELOPMENT: Current information is bare-bones and will be updated with more detail in a future update.]

Remarks

Art alts are used and referenced in a variety of different files to add graphics to certain entities within the game. These files are as follows: data\npcs.txt, data\tilesets.txt, and data\particles.txt. Clicking on any of these filenames will take you to their respective pages for more information (particles not yet available).

Not all art alts. will work in a usable fashion and be compatible with one another. A good example being any of the tilesets which, if applied to something like an NPC, will simply display all of its individual tile graphics in rapid succession. Noting down all of these potential incompatibilities would be far too large and complex of a list, so trial-and-error, as well as practice, is the best method for figuring out what will and will not work.

If the game crashes with an error referring to a movie clip not being found, it is most likely due to an art alt. being named incorrectly in one of the files referenced above.

Tilesets

Location in the unpacked data: data\tilesets.txt

The tilesets file is one of the most important when modding TEIN, especially in regards to adding new areas/zones. The file dictates general information about a given area, but also defines many of the traits and aspects that will make an area unique (graphical elements, what music to use, palette, etc.).

Here is an example tileset taken from the game, ("The End" downward secret area tileset):

1xd { #1 bonus downward areas
  area_name "The End"
  area_label_frame 1
  tile_graphics Tilecity
  overlay_graphics Overlayscity
  background_graphics bg2
  palette 1
  fx_shader reflectionripples


  music [**hmk_secret_intro.ogg, hmk_secret_loop.ogg**]
  ambience rain.ogg
  stop_previous_music false

  music_volume 1
  ambience_volume 1

  area_type normal

  tile_particle_1 drip

  npc_1 NPCD6
  npc_2 NPC0
  npc_3 none
}

Whilst this may seem complex, the syntax for a tileset can be broken down and represented as the following:

[**TILESET_NAME**] {
  [**VARIABLE_NAME**] [VALUE]
  ...
}

The # followed by text, in The End example, is simply a comment and not interpreted/read by the game itself, hence why it was not added in the simplified syntax breakdown.

So, overall, the "tilesets.txt" file simply stores a series of tilesets that define properties, features, and aspects of the different zones in the game. Allowing for them to make use of different assets, music, NPCs, alternate graphics, particles, etc.

Contents

• Variables Overview - Details about the Area Name variable.
• Area Name - Details about the Area Label Frame variable.
• Area Label Frame - Details about the Area Type variable.
• Area Type - Details about the Tile Graphics variable.
• Tile Graphics - Details about the Overlay Graphics variable.
• Overlay Graphics - Details about the Background Graphics variable.
• Background Graphics - Details about the Foreground Graphics variable.
• Foreground Graphics - Details about the Palette variable.
• Palette - Details about the Music variable.
• Music - Details about the Ambience variable.
• Ambience - Details about the Music Volume variable.
• Music Volume - Details about the Ambience Volume variable.
• Ambience Volume - Details about the Stop Previous Music variable.
• Stop Previous Music - Details about the NPC variable.
• NPC - Details about the Art Alts. variable.
• Art Alts - Details about the Toxic Timer variable.
• Toxic Timer - Details about the Cart Intro PNG variable.
• Cart Intro PNG - Details about the Cart Intro Palette variable.

Variables Overview

• area_name - The name that will appear on the save file. It is also used to reference the area in certain instances.
• area_label_frame - The title graphic in the game’s SWF that is displayed when the area is entered.
• area_type - What sub-type of area is it, defines certain properties of the level (e.g. dark levels use tumors as lives).
• tile_graphics - The graphical tileset to use, changes details about the visuals of the area’s layers.
• overlay_graphics - The graphics that are displayed on top of the active layer (bricks, rocks, bones, etc.).
• background_graphics - The background image to use for the area.
• foreground_graphics - The foreground image to use for the area.
• midfx_graphics - ???
• midfx_layer - ???
• fx_shader - The shader to apply certain visual effects in the area.
• fx_shader_mid - ???
• shader_param - Controls the intensity of the mid_fx layer (from 0 to 1, decimal numbers valid).
• palette - The row of the palette.png to use for rendering graphics. (Palette rows start couting from 0, not 1).
• music - The music to play whilst in the area.
• ambience - The ambient background noise that will be played in the area.
• music_volume - The volume the area’s music should be played at.
• ambience_volume - The volume the area’s ambience should be played at.
• stop_previous_music - A flag stating whether the previous music track should stop or continue playing silently.
• tile_particle_1 (to 5) - A particle effect, defined in particles.txt, to assign to the two particle tiles.
• global_particle_1 (to ???) - A particle effect, defined in particles.txt, to spawn globally throughout the area.
• npc_1 (to 3) - The NPCs, defined in npcs.txt, to assign to the three NPC tiles used in the level.
• decoration_1 (to ???) - The decorations to assign to the ??? decoration tiles used in the level.
• art_alts - Alternate sprite graphics to use on entities that allow for alts.
• toxic_timer - Controls how long toxic clouds and water will take to kill the player in seconds.
• cart_intro_png - The filename from the textures\ folder to use as the cartridge area’s intro graphic.
• cart_intro_palette - The palette to use when rendering the cartridge intro graphic.

Area Name

The area name is a unique identifier for a given area, it is the text that will appear on the save file when a game is saved within the zone, when writing the label frame within the tilesets file, it should be wrapped in double-quotes "Example Name" allowing for spaces. Not doing this may confuse the game and cause problems when reading the area’s tileset.

Whilst it may be assumed that this variable also controls the level name (bottom-right corner in-game), this is in fact incorrect. The individual level names are controlled via the levelinfo.txt file, in the data\ folder of the unpacked game files; for more information on editing level info, click here. The text graphic displayed at the top of the screen when a new zone is entered is also not controlled by this property, see the Area Label Frame section below for more info.

The only other factor controlled by the area name is the slant effect seen in Nevermore/The Future (see image below). By setting an area’s name to "Nevermore" it will be given said slanting effect, but as stated previously, will also result in the, most likely, unwanted side-effect of the save file displaying "Nevermore". The only, currently known, solution to setting the slant effect is by hacking and modifying a plain-text value contained withing the game’s executable located at address 0x00232A18. However, performing the hack and handling the legality of redistributing the executable is more effort than it is worth. Furthermore, the string appears to be of a fixed length, or at the very least only contain a few more bytes that could be overwritten. Meaning assigning a zone like the Wall of Sorrow the slanting effect would be impossible, due to this limitation.

Notice the slight slant down on the left side of the screen, when compared to the right.

Area Label Frame

Area Label Frame

The area label is the unique graphic that appears on screen whenever a new area is entered. The area label frame variable refers to a specific frame of the area label symbol, located inside the game’s SWF, informing the game which graphic to render--basically acting as an ID for each graphic. Below is a list detailing what frame holds each graphic, and some examples of area labels on the right:

• 00 - No Area Label
• 01 - The End
• 02 - Arid Flats
• 03 - Overflow
• 04 - The Split
• 05 - Wall of Sorrow
• 06 - SS Exodus
• 07 - Retrograde
• 08 - The Machine
• 09 - The Hollows
• 10 - Golgotha
• 11 - Anguish
• 12 - Gloom
• 13 - Blight
• 14 - Ruin
• 15 - Nevermore
• 16 - The Future

Area Label Examples

Adding new area labels, or modifying existing ones, involves modifying the game’s SWF. For more information on the SWF and modifying it, click here.

Area Type

The area_type variable controls specific aspects of a tileset/area, such as how it will handle deaths, etc. If the area type variable is left undefined, then the area will be of type normal -- the default value. The variable accepts the following values, with each one having a unique effect that will change the way the area acts:

ironcart

The retro monitor filter will be applied, as will retro sounds, and a cart intro graphic (cart_intro_png) will be displayed when entering the area. Dying will send the player back to the first level in the area; if used in an area that was not reached via the TV/Console, then the player will be spawned in the last non-ironcart room they were in. Using the "Exit Cart" option from the menu will take the player back to 1-1.

cart

The retro monitor filter will be applied, as will retro sounds, and a cart intro graphic (cart_intro_png) will be displayed when entering the area. The player will have a limited number of lives to beat the area. Using the "Exit Cart" option from the menu will take the player back to 1-1.

glitch

The retro monitor filter will be applied, as will retro sounds, and a cart intro graphic (cart_intro_png) will be displayed when entering the area. Graphical elements will be reset/randomised on every death. Using the "Exit Cart" option from the menu will take the player back to 1-1.

normal

The standard areas in the game, there are no extra effects or parameters added.

dark

The current tumor count will act as the player’s lives, and losing all lives will respawn the player at the first level in the area.

Tile Graphics

The tile_graphics variable dictates what graphics are used when drawing the environment tiles for the game, these include the solid tiles and the modular background layer pieces. As can be seen in the example images, this could mean changing a damaged building wall in The End tileset, to a natural rocky wall in the Arid Flats tileset, and so on; allowing for each area to have a unique theme and visual flare. As well as the graphics for the environment tiles themselves, the value given to the tile graphics will also control what default decorations an area will use. However, these decorations can be overwritten by assigning new ones using the decoration_1 (to ???) variable. For more information on what these default decorations are, see the Decorations section on this page. If the variable is unset then it will be given the value of Tile, the default value. None is not a valid value for tile graphics, and will result in the game crashing on startup.

Whilst it may be logical to also assume that the tile graphics will impact the small images drawn on top of the tiles (bricks, rocks, etc.), this is in fact not true and is instead controlled by the overlay_graphics variable. Furthermore, graphics such as Water, Lava, and Pollution/Toxic are also controlled via other factors, in this case shaders. For more info on adding shaders to tilesets, click here.

The specific graphics assigned to each tile within the tileset is determined randomly when the level is loaded, and in the case of TileGlitch graphics, further randomisation to the tiles will occur.

As the tile graphics variable takes in movie clips as its value, this means that any of the available art alts. can be used as tile graphics. For a full list on all the available art alts. see the Art Alts. section.

Examples of the different tile graphics can be seen below.

Overlay Graphics

The overlay_graphics variable dictates what graphics are drawn on top of the active/solid tiles and the first layer of modular background tiles. As can be seen in the example images, this could mean changing a few bricks in The End overlay, to a cluster of rocks in the Arid Flats overlay, and so on; allowing for each area to have a unique theme and visual flare. If the variable is unset then it will be given the value of TileOverlays, the default value. None is also a valid value for overlay graphics, and will result in no overlays being displayed for the area.

The specific graphics overlayed on each tile in the level is determined randomly when the level is loaded, and if TileGlitch is being used as the tile_graphics value, then further randomisation to the tiles and overlays will occur.

As the overlay graphics variable takes in movie clips as its value, this means that any of the available art alts. can be used as overlay graphics. For a full list on all the available art alts. see the Art Alts. section.

Examples of the different overlay graphics can be seen below.

Background Graphics

The background_graphics variable specifies what graphic to display as the background image of a level. If no background_graphics variable is specified then the game will render the background as a solid dark-grey colour; this is the same as if None is used as the background graphics value. Each background has a unique anchor-point, meaning each one will be placed in a level differently, sometimes resulting in the solid grey colour showing through in areas. The N0 tile can be used to offset the background within a level, so that it can be placed where desired.

As the background graphics variable takes in movie clips as its value, this means that any of the available art alts. can be used as a background image. For a full list on all the available art alts. see the Art Alts. section.

Examples of the different background graphics can be seen below.

Foreground Graphics

The foreground_graphics variable specifies what graphic to display as the foreground image of a level. If no foreground_graphics variable is specified then the game will not render anything as the foreground; this is the same as if None is used as the foreground graphics value. Each foreground has a unique anchor-point, meaning each one will be placed in a level differently. The N1 tile can be used to offset the foreground within a level, so that it can be placed where desired.

As the foreground graphics variable takes in movie clips as its value, this means that any of the available art alts. can be used as a foreground image. For a full list on all the available art alts. see the Art Alts. section.

Examples of the different foreground graphics can be seen below.

Palette

The palette variable is used to specify which colour palette the tileset/area will use when drawing graphics to the screen. The number supplied as a value references a row of colours, in the palettes file, that will be used to draw the level. The file storing these colours is the textures\palette.png file. The first row in the file uses the ID number 0 and each palette going down follows consecutively, ending with palette 63 -- meaning there are 64 unique palettes in total. If no palette variable is specified for a tileset, it will use palette 0 by default.

For more information on what each row and column of the palette file means, how to modify palettes themselves, how to expand the palettes file, and other general palette information, see the Palettes section of the reference.

Music

The music variable can take in either one or two filenames from the audio\music\ folder (as well as its various sub-folders). This variable will dictate the looping background music that will play throughout the area. If one filename is supplied for the variable, it will simply play said music file continuously throughout the area. However, if two music files are given then the first file will be played once as an intro, and the second will be played on loop for the rest of the area. The syntax for these two methods of using music are as follows:

music FILENAME.ogg # single-file
music [FILENAME_INTRO.ogg, FILENAME_LOOP.ogg] # multi-file

Where the all-caps FILENAME variants are various music files.

The music files themselves are of type OGG and the .ogg extension must be added to the name when being referenced. For example:

music 1812_loop #wrong
music [1812_intro, 1812_loop] # wrong

music 1812_loop.ogg #correct
music [1812_intro.ogg, 1812_loop.ogg] # correct

Note that music is not just contained within the root folder and there are other sub-folders that contain music. When accessing retro, and glitch music it is important to include the appropriate directory/folder name so that the game knows where to search for the files. Like so:

music retro\danse_loop.ogg
music glitch\nobm_loop.ogg

The default music intros, loops, etc. are as follows:

• danse_intro.ogg and danse_loop.ogg - (The End)

• newworld_intro.ogg and newworld_loop.ogg - (Arid Flats)

• 1812_intro.ogg and 1812_loop.ogg - (Overflow)

• hungarian_rhapsody_intro.ogg and hungarian_rhapsody_loop.ogg - (Wall of Sorrow)

• slave_intro.ogg and slave_loop.ogg - (SS Exodus)

• dante_intro.ogg and dante_loop.ogg - (The Hollows)

• hell_intro.ogg and hell_loop.ogg - (Golgotha)

• fields_intro.ogg and fields_loop.ogg - (Retrograde)

• bumblebee_intro.ogg and bumblebee_loop.ogg - (The Machine)

• danse_intro_dark.ogg and danse_loop_dark.ogg - (Anguish)

• newworld_intro_dark.ogg and newworld_loop_dark.ogg - (Gloom)

• 1812_intro_dark.ogg and 1812_loop_dark.ogg - (Blight)

• mountainking_fakeout.ogg and mountainking_loop.ogg - (Ruin)

• escape.ogg - (Acceptance)

• requiem_intro.ogg and requiem_loop.ogg - (Nevermore and The Future)

• hmk_secret_intro.ogg and hmk_secret_loop.ogg - (Downwards Secret)

• gymnopedies_intro.ogg and gymnopedies_loop.ogg - (Upwards Secret)

• gynossiennes_intro.ogg and gynossiennes_loop.ogg - (Main Menu)

• supercart.ogg - (All (Iron) Carts Collected)

• the_end_is_nigh_vocals.ogg - (Credits Vocals)

• credits.ogg - (Credits Instrumental)

• newworld2_intro.ogg and newworld2_loop.ogg - (Unused)

• gameover.ogg - (Unused)

• mountainking_intro.ogg - (Unused)

• retro\danse_intro.ogg and retro\danse_loop.ogg - (Mortaman)

• retro\newworld_intro.ogg and retro\newworld_loop.ogg - (Blaster Massacre)

• retro\1812_intro.ogg and retro\1812_loop.ogg - (River City Rancid)

• retro\hungarian_rhapsody_intro.ogg and retro\hungarian_rhapsody_loop.ogg - (Ash Climber)

• retro\slave_intro.ogg and retro\slave_Loop.ogg - (Fallen Fantasy)

• retro\dante_intro.ogg and retro\dante_loop.ogg - (Catastrovania)

• retro\hell_intro.ogg and retro\hell_Loop.ogg - (Dig Dead)

• retro\fields_intro.ogg and retro\fields_loop.ogg - (Rubble Bobble)

• retro\bumblebee_intro.ogg and retro\bumblebee_loop.ogg - (Morbid Gear)

• retro\beeth5_intro.ogg and retro\beeth5_loop.ogg - (Super Mega Cart All Stars)

• retro\requiem_intro.ogg and retro\requiem_loop.ogg - (Iron Carts)

• retro\turkish_intro.ogg and retro\turkish_loop.ogg - (The End is Nigh)

• retro\gnossiennes_loop.ogg - (Cartridge Menu)

• retro\gameover.ogg - (Cartrige Game Over)

• glitch\nobm_intro.ogg and glitch\nobm_loop.ogg - (Scab or Die)

• glitch\newworld_intro.ogg and glitch\newworld_loop.ogg - (Tombs and Torture)

• glitch\bumblebee_intro.ogg and glitch\bumblebee_loop.ogg - (Pus-man)

• glitch\homk_intro.ogg and glitch\homk_loop.ogg - (Ghosts ’N Grieving)

• glitch\dante_intro.ogg and glitch\dante_loop.ogg - (Dead Racer)

• glitch\dance_intro.ogg and glitch\dance_loop.ogg - (Spike Tales)

• glitch\turkish_intro.ogg and glitch\turkish_loop.ogg - (The End is Nigh Corrupted)

If the music variable is left unset then no background music will be played in the area.

Ambience

The ambience variable takes in a filename from the audio\ambience\ data folder. This variable will dictate the looping ambient noise that will play throughout the area. The ambience files are of type OGG and the ```.ogg`` extension must be added to the name when being referenced. For example:

ambience caves # wrong
ambience caves.ogg # correct

The default available ambient sound loops are as follows:

• caves.ogg - (The Hollows, SS Exodus, Ruin)
• cogs.ogg - (Unused)
• flesh.ogg - (Retrograde, Nevermore)
• labloop.ogg - (The Machine)
• rain.ogg - (The End, Anguish)
• ruins.ogg - (Overflow, Blight, Ruin, The Future)
• volcano.ogg - (Anguish, Golgotha)
• water.ogg - (Unused)
• wind.ogg - (Arid Flats, Gloom, The Split, Wall of Sorrow)

If the ambience variable is left unset then no ambient noise will be played in the area.

Music Volume

The music_volume variable controls the volume the music is played at, relative to the global music volume setting. Most areas will leave this variable at a value of 1. If this value is left unset then it defaults to 1.

Ambience Volume

The ambience_volume variable controls the volume the ambience is played at, relative to the global sound volume setting. Most areas will leave this variable at a value of 1. If this value is left unset then it defaults to 1.

Stop Previous Music

The stop_previous_music variable is used to specify whether the previous music track being played should be stopped or not; it accepts either a true or false value. If it is set to false then when the previous area is re-entered the music will not play from the start again, this is usually used in secret areas so that the music does not reset everytime a secret is entered. However, if it is set to true then the music will restart from the beginning when the previous area is re-entered. The default value for this variable is true, so if the variable is left unset then the previous music track will be set to stop when entering the area.

NPC

The npc_x variables (where x is a number between 1 and 3) are used to specify which NPCs from the data\npcs.txt will be spawned using the respective Z1 - 3 tiles, when placed in a level. If an NPC variable is left unset, then placing the corresponding NPC tile will simply do nothing and no NPC will be spawned. This will be the same if the NPC variable is assigned a value of None. Supplying an invalid/nonexistent NPC name to one of the variables will result in a GSON error when the room containing the NPC is entered.

For more information about what NPCs are available to spawn, and how to modify and create new NPCs, see the NPCs section for detailed descriptions.

Art Alts

The art_alts variable controls what graphics will be swapped out for other graphics within the area, and is quite different from many of the other variables seen within the tilesets file. So, the purpose of art alts. is to tell the game to replace any instance of a certain graphic and replace it with a different one; for example, replacing all tumor graphics to make them look like mega tumors instead. Note that entities altered by art alts. will still act exactly the same, they will just appear diffeent. The basic syntax for art_alts is as follows:

art_alts [
  [ORIGINAL, REPLACEMENT]
  ...
]

Where ORIGINAL is an art asset name to change, and REPLACEMENT is an art asset name that will replace the original asset. Line 2 in the example can then be repeated over-and-over again allowing for as many art alts. to be applied to an area as possible.

There is no limit to what assets can be swapped, however, not all graphics will work correctly when being swapped; with some glitching or moving sporadically. To avoid this it is usually best to swap out similar graphics, or graphics of the same type (enemies, tiles, etc.). For a full list on all the available art alts. within the game, see the Art Alts. section for more information. Do remember that art alts. are case-sensitive values.

Toxic Timer

The toxic_timer variable specifies how long it takes for toxic clouds and water to kill the player, in seconds. This variable allows for values containing a decimal-point. If the toxic timer is not specified the default time given is within 1.8 to 2.0 seconds (this is a rough approximation).

Cart Intro PNG

The cart_intro_png variable is used to specify what image to draw as the intro when entering a cartridge level, as well as the graphic used in the cartridge menu; this can be any graphic in the textures\ folder, even newly added ones. When specifying the filename, the ".png" file extension does not need to be specified and adding it will result in the game crashing when it attempts to load the the tileset. Furthermore, unlike other variable values in the tilesets file, the intro PNG filename is not case-sensitive. If no value is specified the game will default to using textures\titlecart.png as the intro graphic and textures\emptycart.png as the cartridge menu graphic.

The existing cartridge graphics are 160x90 pixels in size, scaled up to use a resolution of 1280x720 (a 16:9 aspect ratio). Cartridge graphics can be any size, but if they do not match the 16:9 aspect ratio, then the graphic will be displayed stretched and distorted. Furthermore, any number of colours is allowed in the PNG graphic, however, when rendered in-game the graphic will be limited to the colours in the chosen cart_intro_palette. Examples of both of these limitations can be seen below (the retro filter was disabled for easier and clearer viewing):

The title background image used here has far fewer colours than the original PNG.

The square trophy image is stretched and distorted to fit the aspect ratio.

When creating new cart intro graphics, it is best to use similar greyscale colours to those used in the original cart graphics. This will allow for more accurate control over what pixels map to what palette colours. Below is a useful palette to use when drawing cart intros, with each colour mapping one-to-one with the respective columns of the palette that will be used for rendering the PNG:

Cart Intro Palette

The cart_intro_palette variable is used to specify what palette should be used to draw the intro graphic for a cartridge. As with regular palettes, the number references the row of colours to use from the textures\palette.png file -- starting from 0 and ending at 63. However, unlike regular palettes, the colours used in the cart intro images are not mapped to columns in the same way. Rather than column colours being mapped based on what element is being drawn (tile, background, etc.), cartridge palette columns map based on the greyscale shade. Using the greyscale palette specified in the Cart Intro PNG section to draw cartridge graphics will help when mapping palette colours to a given intro image. If no palette variable is specified for a cart intro, it will use palette 0 by default.

For more information on what each row and column of the palette file means, how to modify palettes themselves, how to expand the palettes file, and other general palette information, see the Palettes section of the reference.

Physics

The various physics files define a variety of variables/values that can be redefined to control the physics of the game. Note that this effects the game on a global scale and cannot be defined to only impact specific areas. Modifying the different physics files can lead to some drastic changes to gameplay and can even create entirely new methods of play, making it an extremely powerful modding tool.

The physics files are split into two main categories: player physics, which defines variables directly relating to the control and feel of the player; and platform physics, which defines variables controlling how the various tag movement tiles move tiles/entities.

Player Physics

Location in the unpacked data: data\playerphysics.txt Location in the unpacked data: data\playerphysics_lowgrav.txt Location in the unpacked data: data\playerphysics_water.txt

The player physics files define a variety of different variables relating specifically to how the player moves throughout the game world. The values will control, movement speed, jump height, long-jump speed, and much more. Player physics is split into three different files, all containing the same variables: the first, playerphysics.txt, is the standard physics for the player when moving around levels, on ground and in air; the second, playerphysics_lowgrav.txt, is the physics used when the player is within a gravitational-pull beam; and the third, playerphysics_water.txt, is the physics applied when the player is currently in a liquid (water, or toxic water). The variables contained within these three files are as follows:

• gravity - The gravity applied to the player normally.
• leniency - The amount of time a player can fall through the air and still jump.
• max_fallspeed - The maximum speed the player can reach whilst fall.
• maxspeed - ???
• runspeed - The maximum movement speed of the player.
• ground_friction - The friction applied to turning whilst on the ground.
• stop_friction - How quickly the player stops moving after releasing a move key.
• air_friction - The friction applied to turning whilst in the air.
• fastfall_gravity - The gravity applied to the player whilst fast-falling.
• fastfall_jerkdown - Inital jerkdown force applied to the player when fast-fall is initiated.
• fastfall_maxspeed - The maximum speed the player can reach whilst fast-falling.
• float_time - ???
• jumpheight - The max height of the player’s jump.
• release_jumpheight - The height of the player’s short hop (tapping the jump button).
• longjump_slidethreshold - ???
• longjump_speed - The speed at which the player moves during a long jump.
• longjump_height - The height gained when performing a long jump from a ledge.
• longjump_airfriction - The friction applied to turning during a long jump.
• ledgejump_height - The height gained from a normal ledge jump (not a long jump).
• enemy_bounceheight_nojump - The height gained by the player when bouncing off an enemy.
• enemy_bounceheight_jump - The height gained by the player when bouncing off an enemy with a jump.
• mush_bounceheight_nojump - The height gained by the player when bouncing off a spring.
• mush_bounceheight_jump - The height gained by the player when bouncing off a spring with a jump.
• enemy_prebounce_time - ???
• enemy_postbounce_time - How long the "no jump" bounce force is applied for? (Impacts no jump bounce height.)
• swimspeed - The speed the player moves horizontally in the water.
• water_exitheight - The height gained when jumping out of the water.

Platform Physics

Location in the unpacked data: data\platformphysics.txt

The platform physics file defines a variety of different variables relating specifically to how the various movement tag tiles will move tiles aroud levels. The speeds for each tile type can be set from within this file, which contains the following variables:

• MovingPlatformSpeedLow - The speed at which tags F8-G1 move tiles.
• MovingPlatformSpeedMed - The speed at which tags G2-G5 move tiles.
• MovingPlatformSpeedHigh - The speed at which tags G6-G9 move tiles.
• SmoothMovingPlatformSpeedXSlow - The speed at which tags N2-N5 move tiles.
• SmoothMovingPlatformSpeedLow - The speed at which tags ID-I5 move tiles.
• SmoothMovingPlatformSpeedMed - The speed at which tags I6-I9 move tiles.
• SmoothMovingPlatformSpeedHigh - The speed at which tags J0-J3 move tiles.
• FallingPlatformGravityLow - The speed at which tag F2 makes tiles fall.
• FallingPlatformGravityMed - The speed at which tag F3 makes tiles fall.
• FallingPlatformGravityHigh - The speed at which tag F4 makes tiles fall.
• WeightedPlatformSpeedSlow - The speed at which tag L7 makes tiles move.
• WeightedPlatformSpeedMed - The speed at which tag L8 makes tiles move.
• WeightedPlatformSpeedHigh - The speed at which tag L9 makes tiles move.
• SmasherSpeedLow - No effect.
• SmasherSpeedMed - No effect.
• SmasherSpeedHigh - No effect.
• SmasherDelayLow - No effect.
• SmasherDelayMed - No effect.
• SmasherDelayHigh - No effect.

Adding New Physics

Originally, physics variables were handled globally and could not be applied in individual areas of the game. At some point Tyler decided to be a really cool guy and gave us the ability to do just that.

Say you wanted to give The End twice as much gravity. First you would need to make a copy of the physics file you want to edit. For this example, we want to edit playerphysics.txt. Name the copied file something logical like "playerphysics_heavygravity". Next, you would open this file and change the value of the gravity to twice its original value (from 40 to 80). Now for the most important part. After you have saved this new file you need to add it to the tileset for the area you want it to be abpplied to. To do this, open tilesets.txt and add a line specifying the physics file you just created. In our example it would look like this:

player_physics data/playerphysics_heavygravity.txt

For water physics, gravity beam physics, or platform physics, you use the same method above except that in the tilesets file you will specify them with the following variables:

water_physics data/playerphysics_honey.txt
lowgrav_physics data/playerphysics_gyrobeams.txt
platform_physics data/platformphysics_fast.txt

The names used above are just used as an example. Obviously you would want to put the name of whatever file you are using in their place. If the specified file does not exist, then the game will default to the normal physics.

Removing a variable from any of the physics files will lead to it being assigned a default value, most likely 0. However, leaving a variable without a value in the file will result in undefined and obscure behaviour from the game and is not recommended at all.

Credits
